shan5 bike classic 2021
ROCKSHOX LYRIK SELECT 29”
Lyrik Select combines an updated DebonAir air spring with the trusted Charger RC damper for unmatched trail control and precision.
SRAM GX EAGLE
The SRAM GX Eagle drivetrain delivers consistent performance every time out.
CRANKBROTHERS SYNTHESIS ALLOY
Brings Control & Stability For Enduro Riding with stiff rear and compliant front wheels

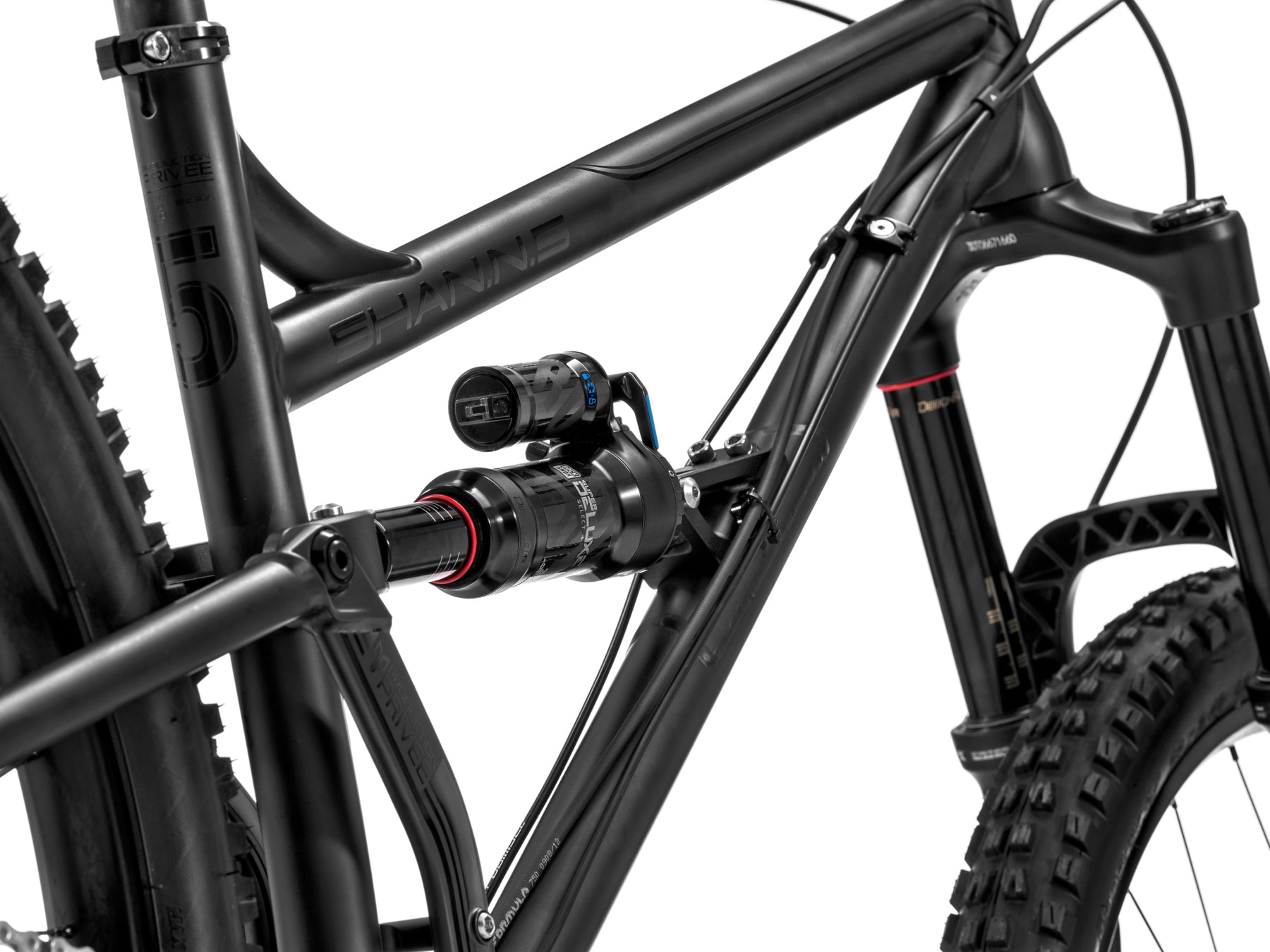

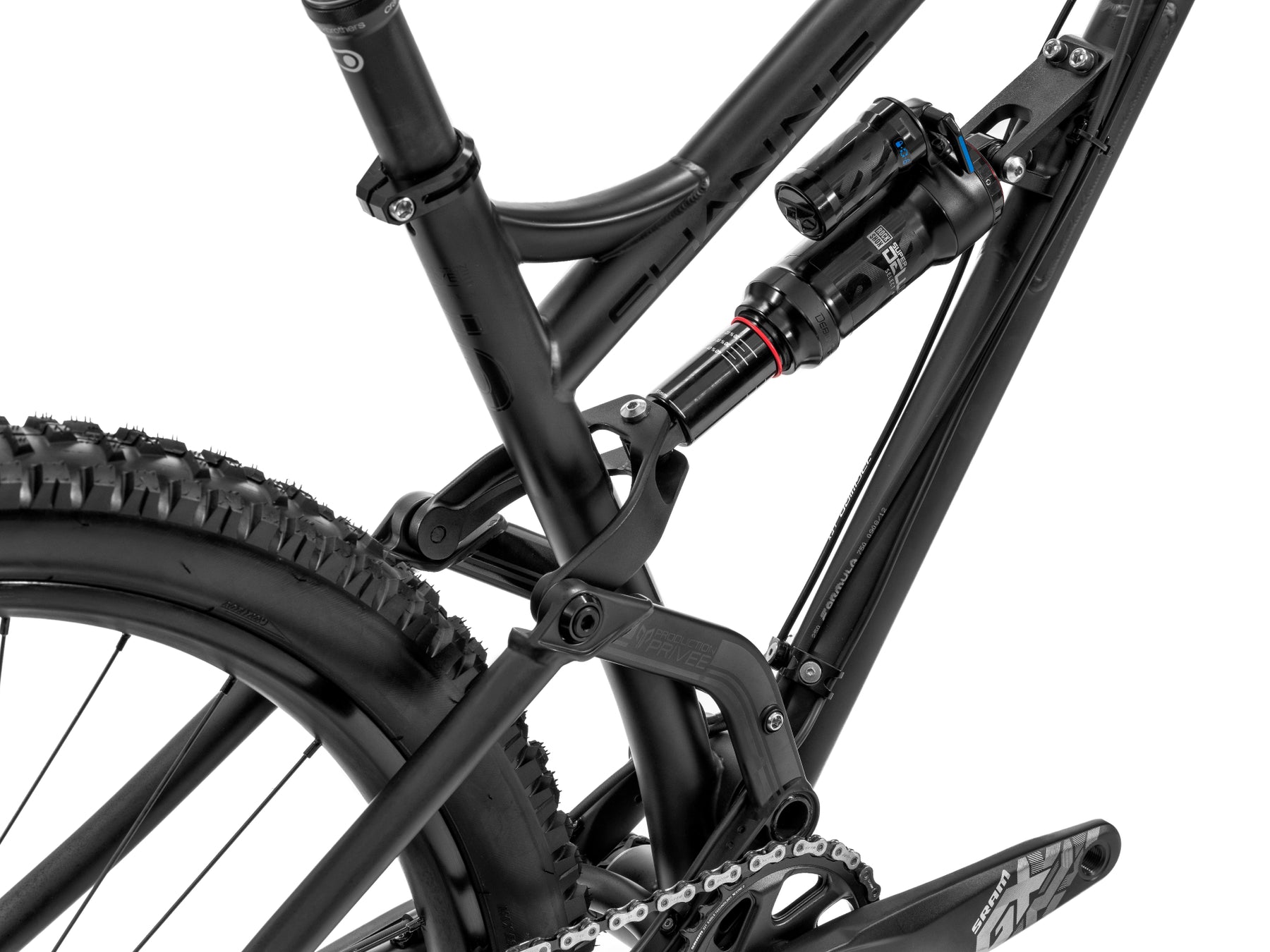

ROCKSHOX SUPER DELUXE SELECT +
Super Deluxe is a high-performance shock delivering an outstanding
ride control. User-fiendly with an easy setup, now with Maxima Plush
fluid to reduce friction and silence noise.

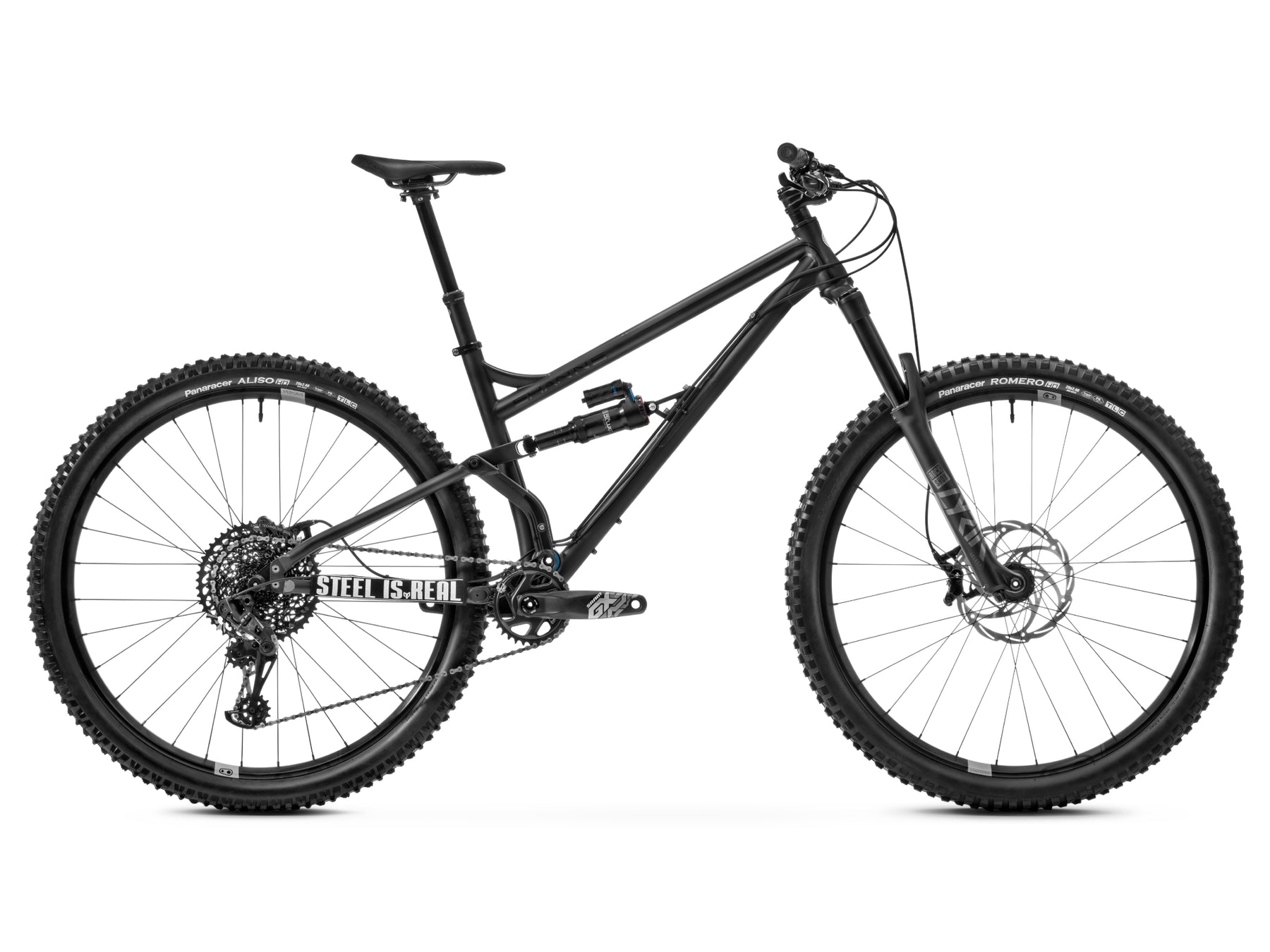

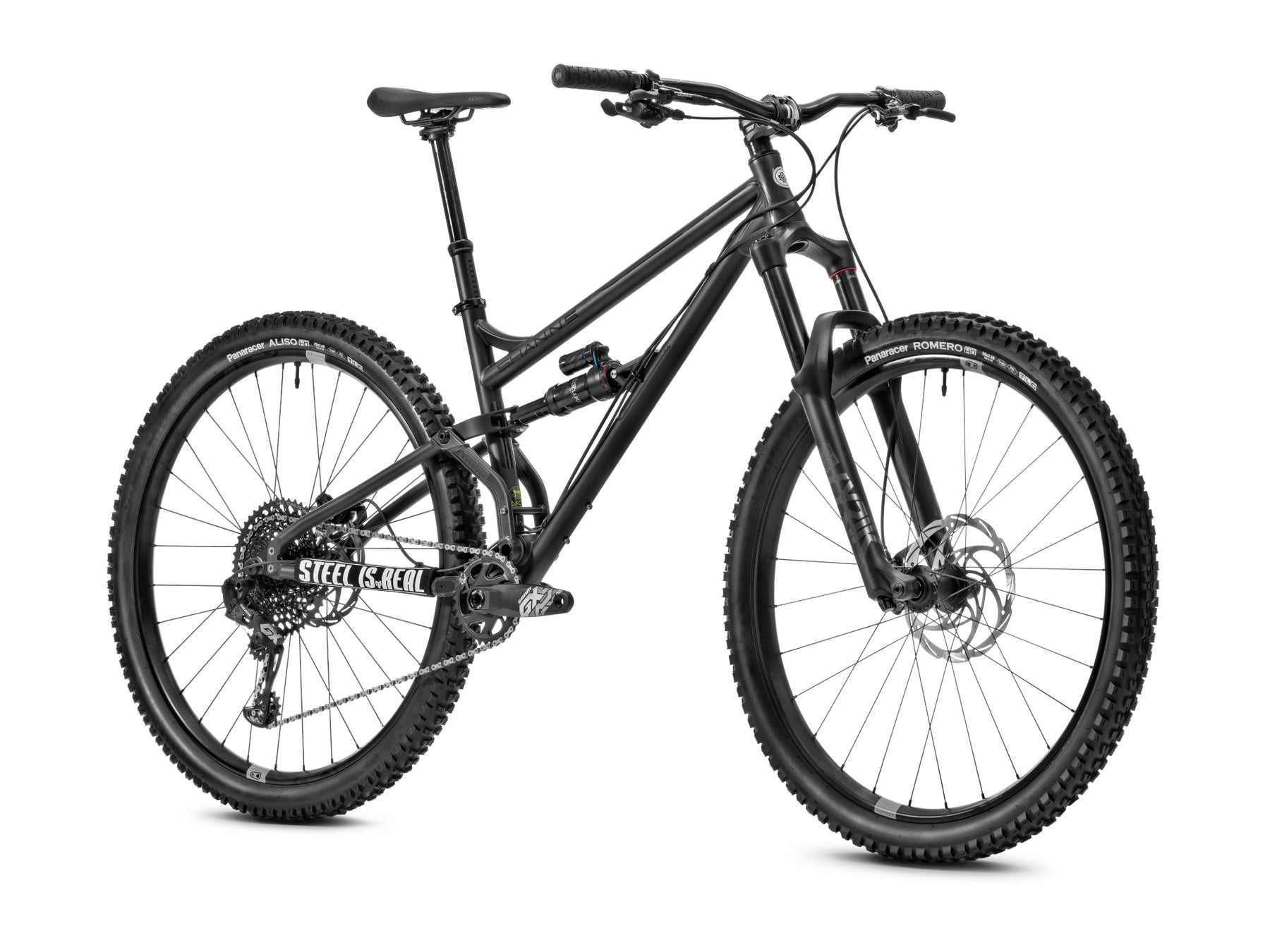

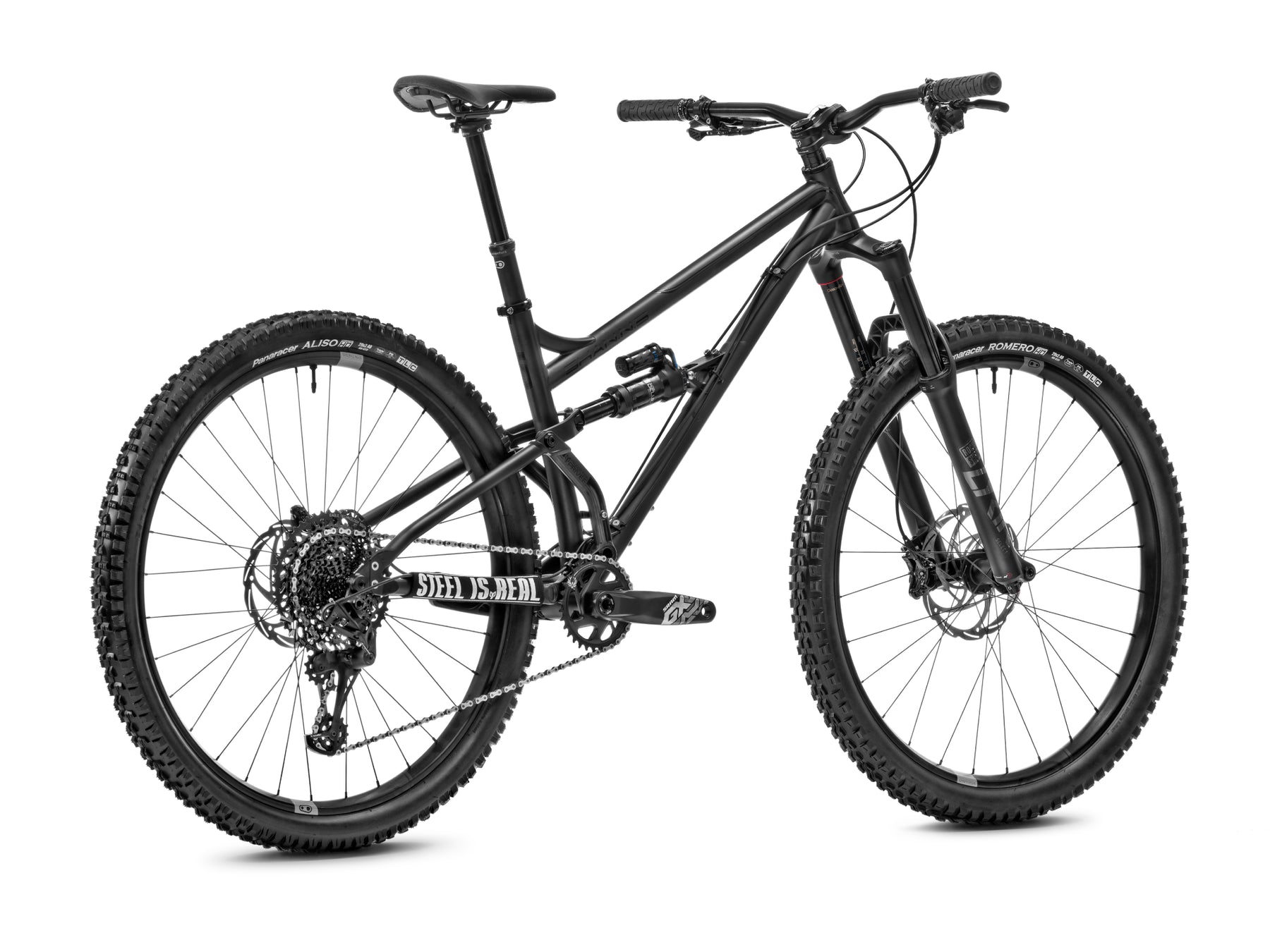

The brand's flagship, SHAN Nº5 remains intact. Whether it’s a trip up to the mountains, a fun ride out with your friends, an exciting weekend at your favorite bike
park or a thrilling enduro race, the SHAN Nº5 is your go to bike for as long as you can ride!

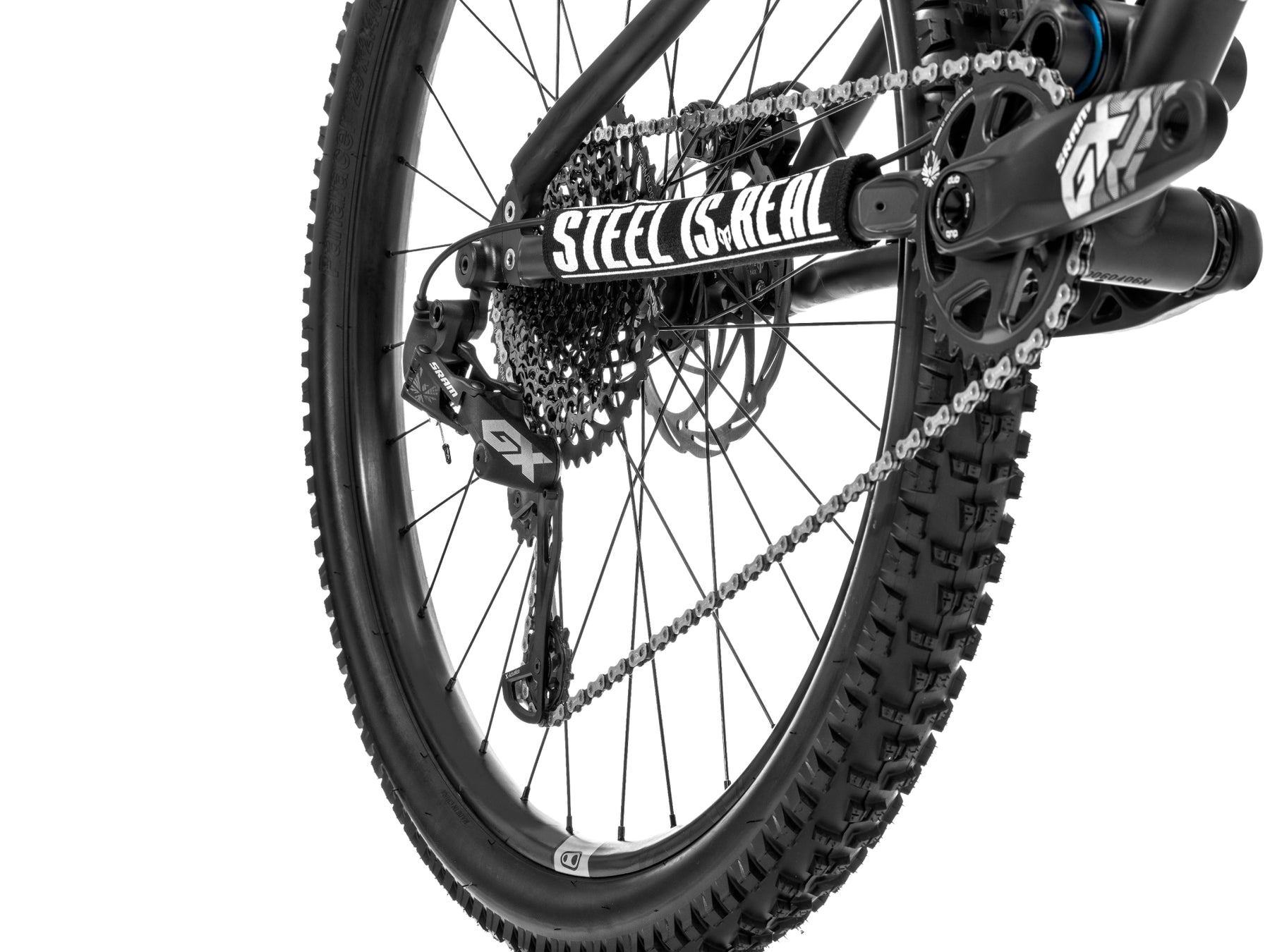

*All bike orders include the “Steel is Real” chainstay protector by default.
Features
ROCKSHOX LYRIK SELECT 29”
Lyrik Select combines an updated DebonAir air spring with the trusted Charger RC damper for unmatched trail control and precision.
SRAM GX EAGLE
The SRAM GX Eagle drivetrain delivers consistent performance every time out.
CRANKBROTHERS SYNTHESIS ALLOY
Brings Control & Stability For Enduro Riding with stiff rear and compliant front wheels
ROCKSHOX SUPER DELUXE SELECT +
Super Deluxe is a high-performance shock delivering an outstanding
ride control. User-fiendly with an easy setup, now with Maxima Plush
fluid to reduce friction and silence noise.
classic
SIZING |
|
|
Small |
Medium Recommended height 175cm to 182cm |
|
Large |
X-Large Recommended height 192cm and Up |
SPECIFICATIONS |
|
|
Frame S/M/L/XL SHAN N5 Classic |
Fork Rockshox Lyrik Select 29" 150mm Charger RC / DebonAir / Tapered / Boost 15x110 / Maxle Stealth / Offset 51mm / Extl Rebound / Low Speed Compression / Gloss Black |
|
Shock Rockshox Super Deluxe Select+ Metric 210x55mm / DebonAir / Extl Rebound / 2 position compression / Custom tune / Black |
Headset PP IS42-IS52 Production Privee IS42-IS52 integrated headset |
|
Stem PP R2R 45 mm for size S / 50 mm for size M & L / 60 mm for size XL Ø 31.8mm / 7075 Heavy duty Aluminum |

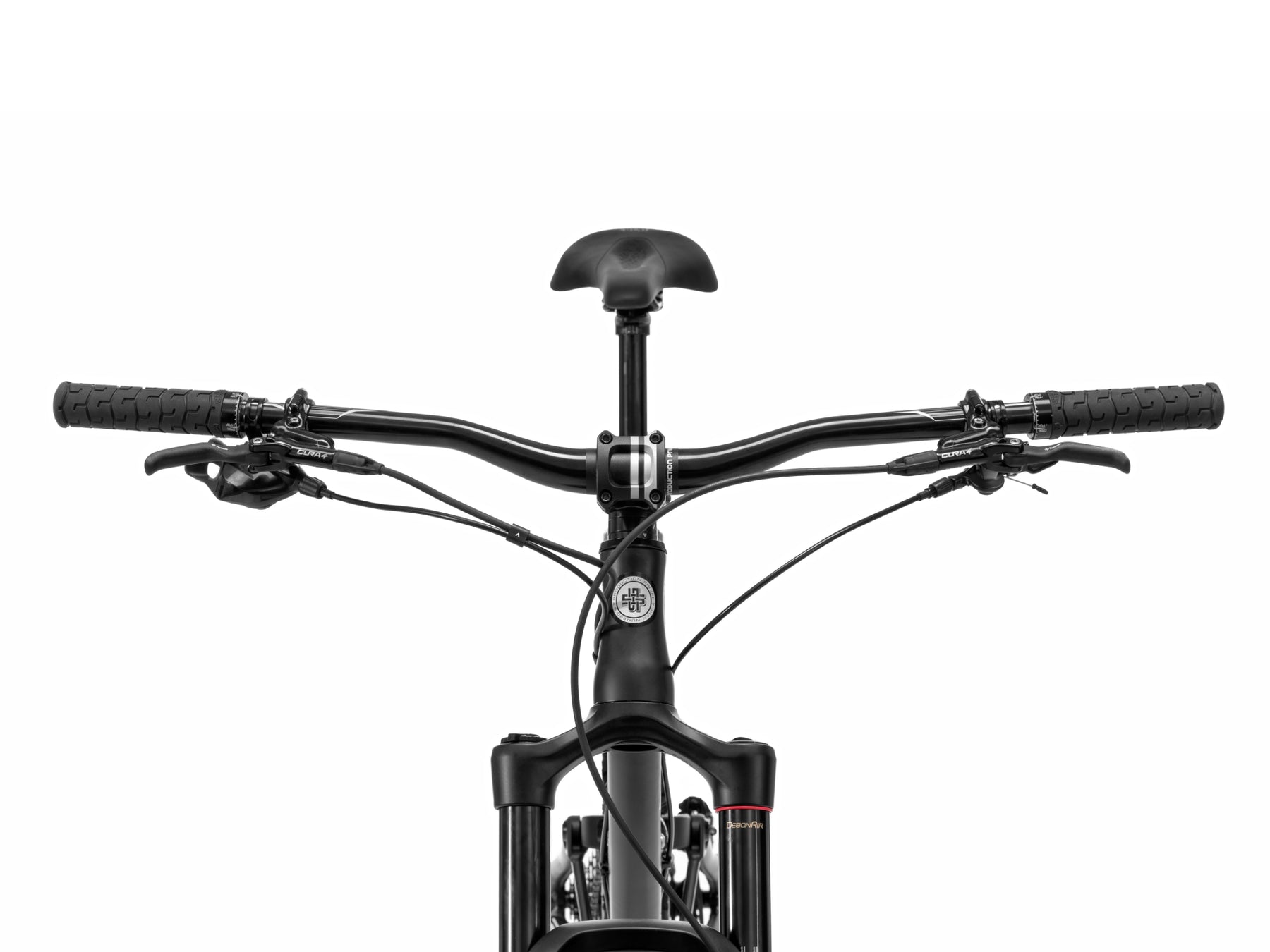

Handlebar PP LGB 1" 780mm Ø 31.8mm / Upsweep 5° / Backsweep 8° / Rise 25,4mm / Al Alloy 7075 T6 DB |
|
Grips Production Privée CR35 Forestal x Production Privée edition / 2-position adjustable (Tour / Race) |
Seatpost Crankbrothers Highline 7 Ø 30.9mm / Length 125mm Size S / Length 150mm Sizes M, L / Length 170mm Size XL / Black ring / Aluminum 7076 T6 |
|
Dropper remote BikeYoke Triggy X Custom Forestal x Production Privée |
Saddle Fizik Alpaca Terra X5 Fibre reinforced nylon / S-alloy rails / 243g / 249 x 145mm |
|
Front Brake / Rotor Formula Cura 4 203mm 4-piston caliper / MixMaster / 6-Bolt Rotors |
Rear Brake / Rotor Formula Cura 4 180mm 4-piston caliper / MixMaster / 6-Bolt Rotors |
|
Cranks SRAM GX Eagle DUB Direct Mount 32T / Length 170mm Sizes S, M / Length 175mm Sizes L, XL |
Rear Derailleur SRAM GX Eagle 12 Speed / X-Actuation / Long cage / Colour: Lunar |
|
Hanger Production Privée |
Cassette SRAM Eagle XG-1275 10-52T / 12 Speed / XD Driver Body / Colour: Black |
|
Chain SRAM GX Eagle 12 Speed / Powerlock / Colour: Silver-Black |
Shifter SRAM GX Eagle 12 Speed / X-Actuation / Colour: Lunar |
|
Front wheel Crankbrothers Synthesis Alloy E7 29" Hub CB / 15 x 110mm Boost / Spokes Sapim E-Light / 6-Bolt / Inner Rim 31.5mm / Outer Rim 37.5mm |
Rear Wheel Crankbrothers Synthesis Alloy E7 29" Hub CB / 12 x 148mm Boost / Spokes Sapim Strong / XD Drivetrain/ 6-Bolt / Inner Rim 29.5mm / Outer Rim 36.5mm |
|
Front Tyre Panaracer Romero 29 x 2.4 HO 3Comp. High Output / Tubeless Ready / Triple Compound / Puncture resistant wall |
Rear Tyre Panaracer Aliso 29 x 2.4 HO 3Comp. High Output / Tubeless Ready / Triple Compound / Puncture resistant wall |
GEOMETRY |
||||
| DESCRIPTION |
S |
M | L | X-L |
| 1. Head Tube Height | 105 mm | 105 mm | 115 mm | 125 mm |
| 2. Top Tube Horizontal | 580 mm | 605 mm | 630 mm | 650 mm |
| 3. Seat Tube Length | 400 mm | 430 mm | 450 mm | 485 mm |
| 4. Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| 5. Wheelbase | 1193 mm | 1218 mm | 1245 mm | 1269 mm |
| 6. BB Drop | -36 mm | -36 mm | -36 mm | -36 mm |
| 7. Head Tube Angle | 64,5º | 64,5º | 64,5º | 64,5º |
| 8. Seat Tube Angle Virtual |
76º | 76º | 76º | 76º |
| 9. Reach |
428 mm | 453 mm | 476 mm | 496 mm |
| 10. Stack |
608 mm | 608 mm | 617 mm | 626 mm |
| H – Fork Height (mm) |
553 mm | 553 mm | 553 mm | 553 mm |
| H – Fork Offset (mm) | 51 mm | 51 mm | 51 mm | 51 mm |
 |
||||
